Product Details
Mains Connector, connects water filters to the mains.

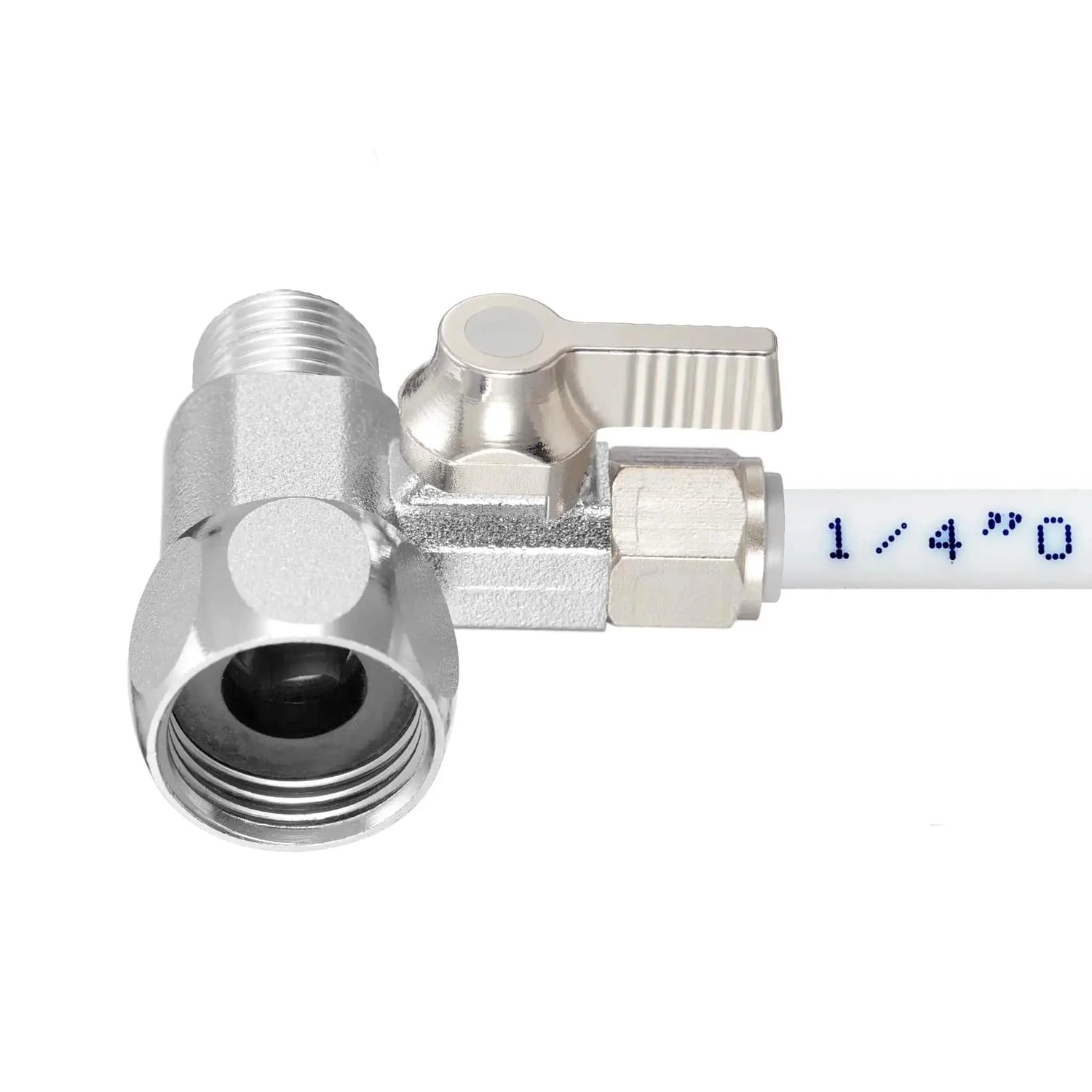

1/2” T Connector with 1/4" outlet (Mains to Water filter)
1/2” Metal T Connector Faucet Diverter Valve Drinking Water Filter 1/4" Ball Valve and Adapter Ring 1/4"Pipe
Diverter valves are great when you want to leave your water filter unit, counter top, drinking water, portable ro/di plumbed in. They fit most standard faucets and can be adapted using an adapter ring (included) for male/female thread.

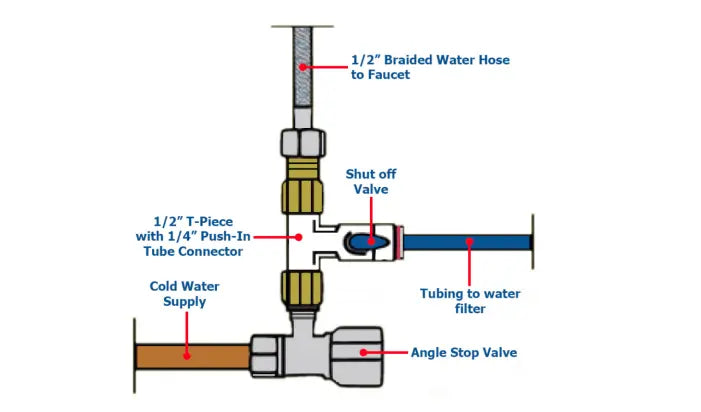

Installing the T Connector Inlet Kit
-
Turn off the undersink valve that feeds the cold water faucet on your sink, then disconnect the flexible connector that attaches to it.
-
Screw the female side of the T Connector onto the valve, then attach the flexible cold water line to the top (male) thread of the T Connector.
-
Screw the quick connect fitting onto the remaining male thread of the T Connector, then push either end of the 1/4" inlet tube into the fitting.
-
Push the other end of the 1/4" inlet tube into the “In” port of your water filter. Be sure that the inline valve in the tube is off (blue handle perpendicular to the tube).
-
Turn on the cold water valve for your faucet and check for leaks.
-
When you're ready to start up the water filtration unit, turn on the inline valve and check for leaks.
